Description:
Power up your refrigeration or HVAC system with the Carrier 25-39610-00SV / 30-125-01K Starter Assembly. This 12 V starter is engineered for use in Carrier Transicold units like the ComfortPro / PC / CT series. With a 9-tooth drive, clockwise (CW) rotation, and compact flange design, it delivers reliable cranking performance even under demanding conditions. Cross-referenced with multiple OEM and aftermarket numbers, it’s a go-to replacement for many cold chain vehicles.
Features:
OEM Part#: 25-39610-00SV / 30-125-01K
Voltage: 12V DC
Power / Rating: ~0.8 kW (~1.07 HP)
Rotation:: Clockwise (CW)

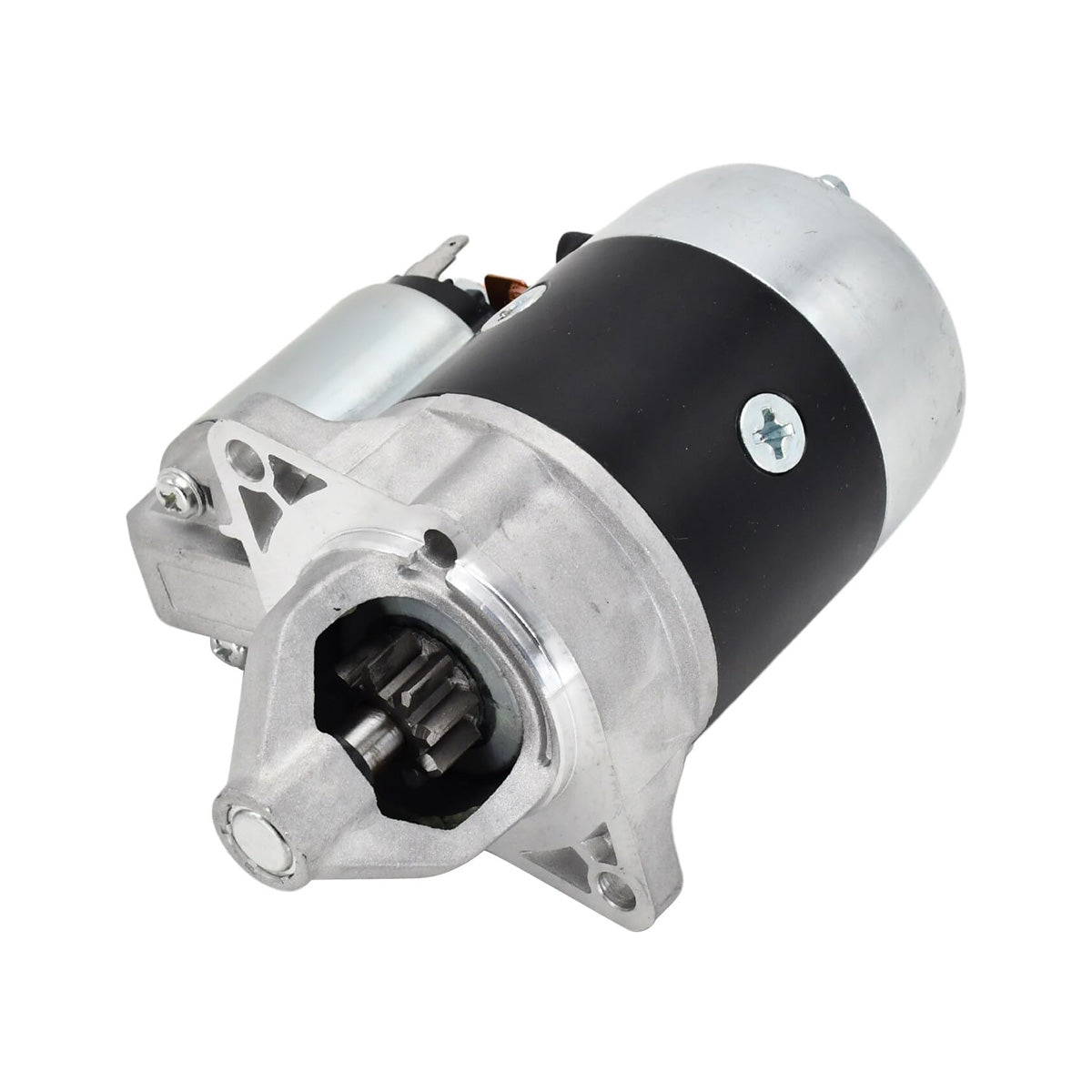

Drive / Gear: 9-tooth pinion
Gear Outside Diameter: ~1.161 in / ~29.489 mm
Mounting / Ears: 2 unthreaded holes (9.0 mm diameter)
Weight: ~9.56 lb / ~4.34 kg
Typical Applications: Carrier Transicold ComfortPro / PC / CT cooling units (e.g. PC5000, PC6000 series), APU
- 25-39610-00SV / 30-125-01K
