Description:

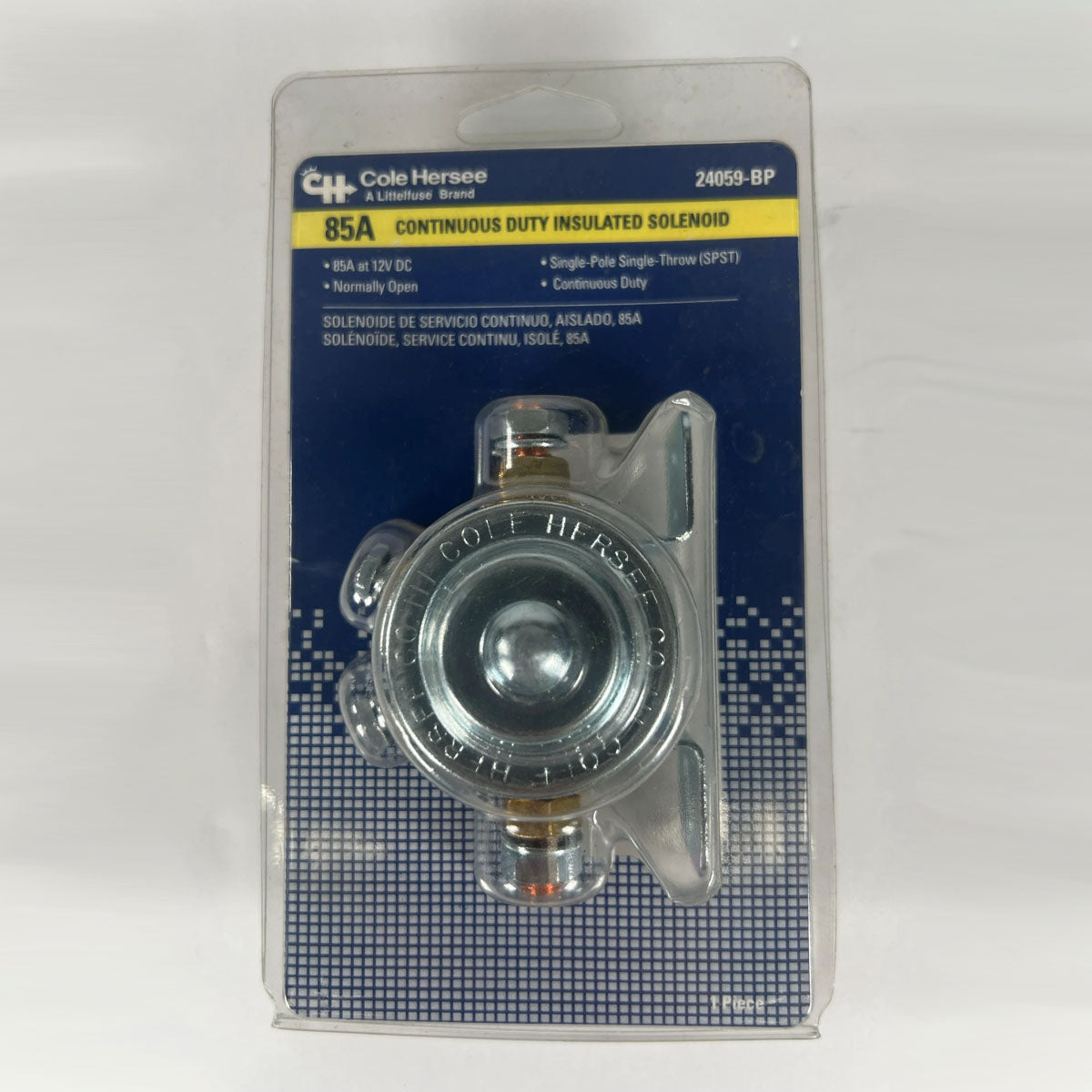

The Cole Hersee 24059-BP Continuous Duty Solenoid is a heavy-duty 12-volt, 85-amp SPST normally open relay designed for continuous-duty electrical switching in commercial trucks, buses, agricultural equipment, marine applications, and industrial machinery. Featuring a plated steel housing, copper contact studs, silver alloy contacts, and insulated construction, this OEM-quality solenoid provides reliable power distribution for battery isolation, auxiliary power circuits, hydraulic systems, PTO controls, and other high-current applications.
Features:
Brand: Cole Hersee (Littelfuse)
Manufacturer Part Number: 24059-BP
Base Part Number: 24059
Product Name: Continuous Duty Solenoid
Product Type: Power Relay
Relay Configuration: SPST Normally Open (1 Form A)
Coil Voltage: 12 VDC
Continuous Rating: 85 Amps
Coil Resistance: 17.5 Ohms
Coil Current: Approximately 686 mA
Housing Material: Plated Steel
Contact Material: Copper with Silver Alloy Contacts
Mounting Type: Chassis Mount
Contact Terminal Thread: 5/16"-24
Coil Terminal Thread: 10-32
Operating Temperature: -40°C to +85°C
Applications: Battery Isolation, Auxiliary Power, PTO Systems, Hydraulic Controls, Commercial Vehicles
Package Quantity: 1
Condition: New
- 24059-BP
