Description:

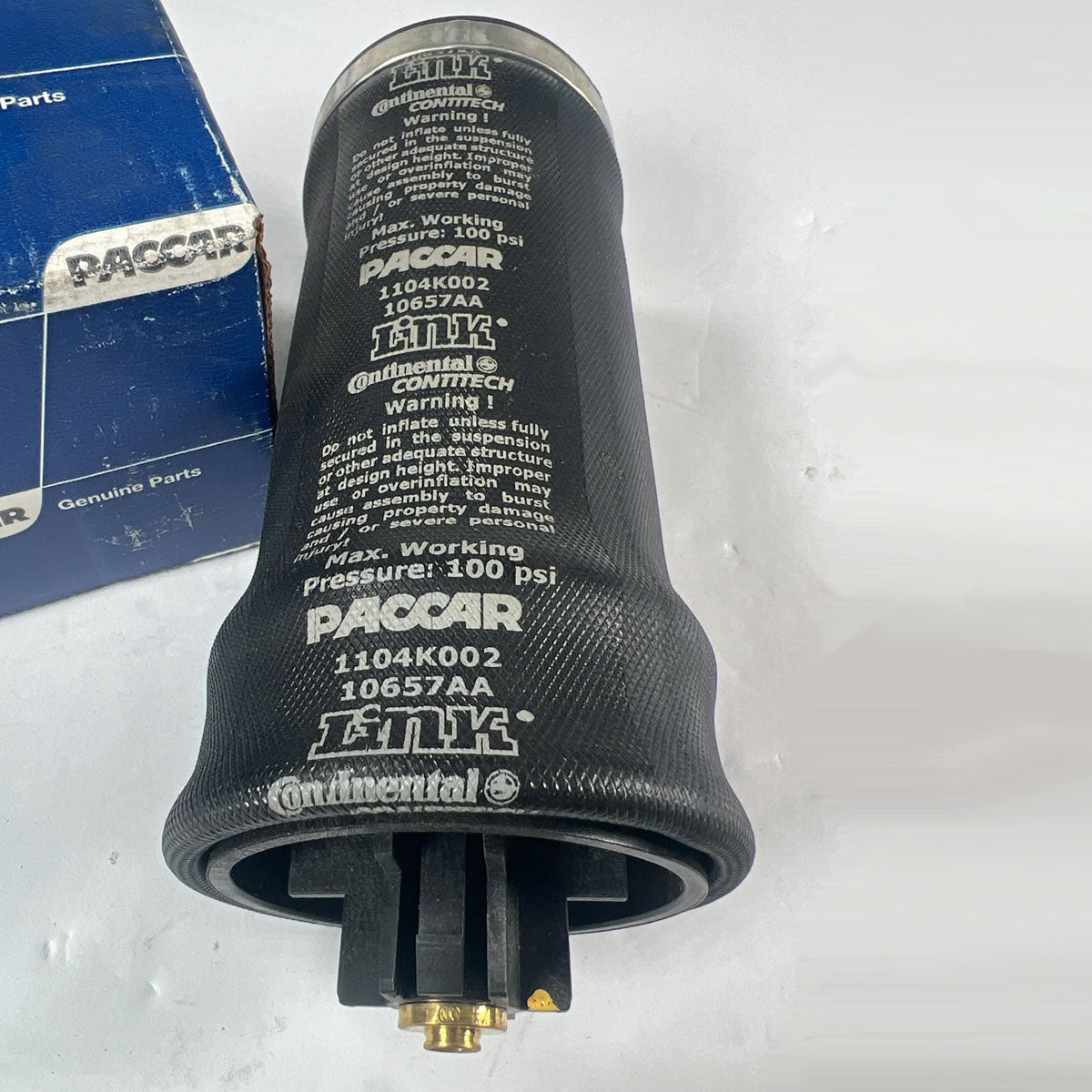

PACCAR 1104K002 Spring-Air is a genuine heavy-duty cab air spring designed for Kenworth and Peterbilt cab/sleeper air suspension systems. This sleeve-style air spring helps isolate the cab from road shock and vibration while supporting proper cab height, ride comfort, and stability. The 1104K002 cross-reference family is used on Kenworth AeroCab and Peterbilt Unibilt applications and is associated with a 4.00-inch design height, 2.40-inch minimum height, and 6.50-inch maximum height.
Features:
Brand: PACCAR
Manufacturer: PACCAR
Part Number: 1104K002
Part Description: Spring-Air
Alternate Description: Cab Air Spring
Component Type: Air Spring / Air Bag
Application: Cab / Sleeper Air Suspension
Design: Sleeve Type / Reversible Sleeve
Design Height: 4.00 in
Minimum Height: 2.40 in
Maximum Height: 6.50 in
Maximum Diameter: Approximately 5.60 in for the air-spring assembly
Top Plate Diameter: 2.99 in
Bottom Plate Diameter: 2.89 in
Bottom Plate Center-to-Center: 2.25 in
Top Mounting: Stud
Bottom Mounting: Piston
Air Inlet: Push-to-connect
Load Rating at 80 PSI: 874 lb
Load Rating at 100 PSI: 1,094 lb
Natural Frequency: 115 CPM
Bumper: No
Top Plate Hole/Stud Quantity: 1
Bottom Plate Hole/Stud Quantity: 1
Bottom Plate Alignment: Parallel
Material: Rubber bellows with composite/plastic piston components depending on manufacturer configuration
VMRS: 016-008-001
Condition: New
Cross Reference: 1104K002, 1104-K002, T81-1000, T811000, 1102-0077, 11020077, 1102K077, 1102-K077, W02-358-7109, W023587109, W02-600-7109, W026007109, W02-600-7121, W026007121, 7109, FS7109, FS7121, 69624, 68037, SC29-Y109, SC29Y109, AS7109, AS-5109, G2297109600, 3040-W023587109, 8235-FS7109, FIW023587109, TDAFS7109, ABSZ70-7109, 14849-HDV7109CB, 730380, E-FS7109
Part# : 1104K002Brand: Paccar
